R1900 / R2880 Waste Ink Kit (DUO15)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Your Price:
£17.45 (inc VAT) VAT price applies to UK/EU customersVAT price applies to UK/EU customers£14.54 (ex VAT)
Ships within 24 hours
Calculated at checkout
*Printer Model:

Product Description

May 2014: This product is now supplied with an updated set of printed instructions that cover the kit installation process in detail.

Waste ink Kit DuoThis is a "Duo" style waste kit tweaked specifically for the Epson R1900/R2000 and R2880 printers for those using the latest installation guide.

The kit contains extended "arm" lengths of 15cm (instead of 10cm) that allows the Y-connector to act as a strain relief against the back of the printer case. This helps avoid damage to the internal waste mechanism by protecting against accidental pulling on the waste kit transferring to the internal waste tubing.

The kit can also be used in the R1800, R2400 etc... (although the standard Duo is just as suitable for the other models - and cheaper)

Note: Not compatible with printers that use a single waste tube

Design Features:

  • 45cm (approx 27.5") double connector tube
  • The valve closes automatically when the waste tube connector is unscrewed
  • A tight liquid proof seal around the fitting stops any leakage
  • Simple to install, easy to maintain.
  • Tanks are all re-usable after emptying

Boxe Tank:

  • Vent hole to allow any air out automatically (No need to vent a bag regularly).
  • The location and size of the vent hole allows for accidents as the waste tank can effectively fall and hang from the waste tube with minimal, if any, spillage.




This product is intended primarily for the:

  • R1900
  • R2000
  • R2880
  • R800

...as an improvement on the standard Duo design.

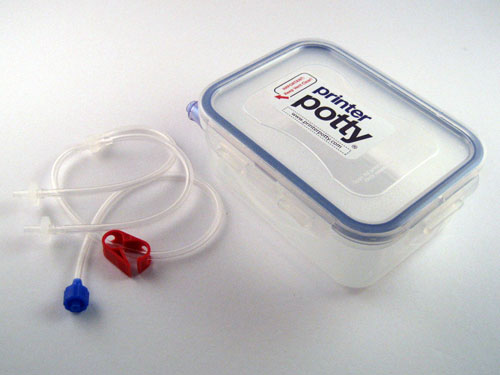

Product Specification

  • Pre-fitted valve, and liquid-tight fitting
  • Extension/Connection tube, pre-assembled with:
    • Tygon tubing 45cm (minimum) total length
    • 1x Tube clamp
    • 2x Barbed tube connectors (one for each waste tube)
    • 1x Y-connector (redirects waste flows into a single external tube)
  • 350ml rigid Box Tank

Additional Information


Boxes and Bag tanks are all interchangeable thanks to the valve/connection system used
NB: Box tank only supplied with this kit.


  • PX5600
  • R1900
  • R2000
  • R2880
  • R800
  • SCP400

Find Similar Products by Tag

r1900  r2880  duo15  r2000
Write your own product review

Product Reviews

Please login to post a review

  1. R2000 Waste Ink Tank

    Posted by Lalex1971 on 10th Jan 2016

    Tank system has been installed on my R2000 and it is working great. The installation was easy. I had prepared my printer well before the kit arrived. The hole that was recommended to be made in the lower-right rear received a rubber washer to pass the tubing through. This made a clean looking installation. I order another unit, SoloMax, for my Epson Artisian 1430 and that printer is ready and waiting for the system now.
