Duo Waste Kit

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Your Price:
£17.45 (inc VAT) VAT price applies to UK/EU customersVAT price applies to UK/EU customers£14.54 (ex VAT)
Ships within 24 hours
Calculated at checkout
*Reset Not Included:

Product Description

May 2014: This product is now supplied with an updated set of printed instructions that cover the kit installation process in detail.

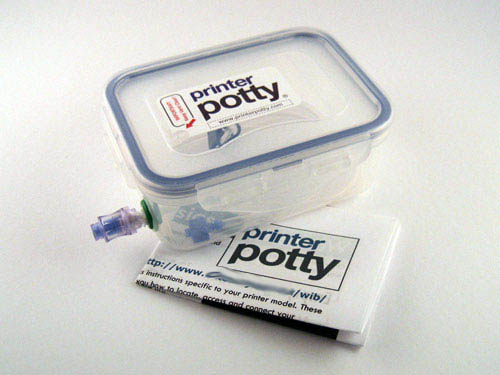

Waste ink Kit DuoThe Duo is the kit for higher end printers that contain a double waste ink tube (eg: R1800, R2400, RX700, etc)

Note: Not compatible with printers that use a single waste tube

This product listing does not include the means to reset your printers waste ink counter. It is intended for customers who have or who intend to source the necessary reset utility/service themselves.
Click here for this Waste Kit + Reset Key bundle

Design Features:

  • 40cm (16") double connector tube
  • The valve closes automatically when the waste tube connector is unscrewed
  • A tight liquid proof seal around the fitting stops any leakage
  • Simple to install, easy to maintain.
  • Tanks are all re-usable after emptying

Boxes Only:

  • Vent hole to allow any air out automatically (No need to vent a bag regularly).
  • The location and size of the vent hole allows for accidents as the waste tank can effectively fall and hang from the waste tube with minimal, if any, spillage.

Bags Only:

  • Completely sealed tank
  • Excellent durability
  • Recommended for environments with curious children or where space is minimal
  • Includes simple vent fitting/tool for emptying



If you haven't used it already, then please use the "QuickFind" tool to identify whether this kit will fit your printer.

These are just some of the printer models this kit is compatible with

  • RX700
  • BX600W, Workforce 600W
  • B40W, Workforce 40
  • R800
  • R1800, R1900
  • R2400, R2880,
  • SX515W
  • ...All double waste tube printers...
  • NOTE: The quickfind utility is always updated first, while this list is just an example of common models


Product Specification

  • Pre-fitted valve, and liquid-tight fitting
  • Extension/Connection tube, pre-assembled with:
    • Tygon tubing 40cm (minimum) total length (custom lengths available on request)
    • 1x Tube clamp
    • 2x Barbed tube connectors (one for each waste tube)
    • 1x Y-connector (redirects waste flows into a single external tube)

Tank Options

  • 180ml / 350ml rigid Box


  • 220ml strong flexible Bag
  • 1x "Vent" fitting (for emptying air/ink from bag as required)


Boxes and Bag tanks are all interchangeable thanks to the valve/connection system used


  • B40W
  • BX600FW
  • BX610FW
  • BX620FW
  • ME600F
  • ME650F
  • NX510
  • NX515
  • PMG800
  • PMT990
  • R1800
  • R2400
  • RX700
  • SX510W
  • SX515W
  • SX600FW
  • SX610FW
  • SX620FW
  • T40W
  • TX550W
  • TX600FW
  • TX610FW
  • TX620FWD
  • WorkForce 40
  • WorkForce 520
  • WorkForce 600
  • WorkForce 610

Find Similar Products by Tag

Write your own product review

Product Reviews

Please login to post a review

  1. The perfect way to reduce maintenance costs!

    Posted by Holger on 4th Aug 2012

    The kit is perfect in any way - it is easy to install and fits perfect for Epson Stylus Photo RX700 printers. The modification guide is very easy to understand - everyone should be able to install the kit after reading it. I am very glad to have found this site and bought the kit instead of sending my printer to Epson for maintenance, which would have caused ten times the cost of this small, powerful waste kit.

    A very big thank you from Germany to OctoInkjet :o)

  2. Perfect waste ink kit for R1800

    Posted by Jim H. on 21st Jul 2011

    This company is run by an exceptionaly helpful owner, which made the purchase and fitting of a waste ink kit to my R1800, a quick and painless experience.
    Only when you see the kit in action, do you properly realise how much ink Epson wastes!

  3. Crusaders for the little guy against Corporate printer manufacturers rip off

    Posted by Steve Oakley on 20th Oct 2010

    I got the dreaded service warning and my Epson RX700 stopped printing, they don't tell you that when buy do they! The Duo waste kit is a great product but the real value here is the sellers knowledge to quickly, simply, permanently and cheaply fix what could be a major and very expensive headache.

    Thank you so much.

  4. Excellent Product, Excellent Service

    Posted by Martin W. on 15th Dec 2009

    Our small family business relies on an Epson R1800. When it displayed a new error and ceased functioning a search on Google showed how the head cleaning sponges were likely full. The printer had shut down! I found the OctoInkjet site which showed me to how to get the printer running again, painlessly, and how to avoid future problems.

    I ordered the waste ink kit from them on the Friday evening and received it Monday! Fitting was easy, only a screwdriver!

    We’re back in action and confident it won’t happen again!

    Thank you OctoInkjet. Excellent product. Excellent service.
