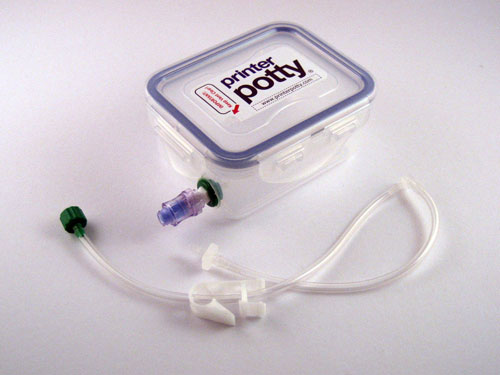

Solo LX Waste Kit

  • Image 1
  • Image 2
  • Image 3
  • Image 4
$21.92 (inc VAT) VAT price applies to UK customers
$18.27 (ex VAT) ex-VAT price applies to EU & other non-UK customersex-VAT price applies to US & other non-UK customersex-VAT price applies to Canadian & other non-UK customersex-VAT price applies to Australian & other non-UK customers
Usually ships within 24 hours
Calculated at checkout
*Reset Not Included:

Product Description

This kit is compatible with the Workforce 7000 series of printers but due to the printer design we strongly recommend purchasing these forceps with the kit to make the installation process considerably easier.

The SoloLX kits have been redesigned specifically for the SX435W and WF7015 series of printers (other printers will no doubt be added to the list in the future)
[See compatibility information below]

Similar to the SoloX and SoloX10 the kit design includes a tube part that can be split and threaded through an enlarged screw hole in the back of the printer while leaving the L' shaped connector inside to act as a strain relief.

Note: This kit will not fit a printer that has two waste ink tubes (eg: R1800, R2400, B40, BX600FW) and are not recommended for SoloX or Solo+/+2 compatible printers


This product listing does not include the means to reset your printers waste ink counter. It is intended for customers who have or who intend to source the necessary reset utility/service themselves.
Click here for this Waste Kit + Reset Key bundle

Design Features:

  • 35cm (13.7") single tube (in 15cm + 20cm parts)
  • Two part design allows insertion through enlarged screw hole
  • L' Shaped (Elbow) Connector between parts acts as strain relief, protecting against accidental pulling on tubing/tank
  • The valve closes automatically when the waste tube fitting is unscrewed
  • A tight liquid proof seal around the fitting stops any leakage
  • Simple to install, easy to maintain.
  • Tanks are all re-usable after emptying
  • Vent hole to allow any air out automatically (No need to vent a bag regularly).
  • The location and size of the vent hole allows for accidents as the waste tank can effectively fall and hang from the waste tube with minimal, if any, spillage.




This kit has been designed specifically for the following series of printers

  • SX435W, SX445W
  • Workforce WF7015
  • ...other models are expected to be compatible pending additional research

If you haven't used it already, then please use the "QuickFind" tool to identify whether this kit will fit your printer.



Instructions on how to install this kit are available


Product Specification

  • Pre-fitted valve, and liquid-tight fitting
  • Extension/Connection tube, pre-assembled with:
    • Tygon tubing 35cm (minimum) total length
    • 1x Tube clamp
    • 2x Barbed tube connector
      • 1x Connect to printer waste tube
      • 1x L' shaped (Elbow) connects both parts of kit tubing

Tank Options

  • 180ml / 350ml rigid Box
  • 220ml strong flexible Bag
  • 1x "Vent" fitting (for emptying air/ink from bag as required)


Boxes and Bag tanks are all interchangeable thanks to the valve/connection system used


  • L110
  • L130
  • L132
  • NX230
  • NX330
  • NX430
  • PX1600F
  • PX1700F
  • PX435
  • SX230
  • SX235W
  • SX430W
  • SX435W
  • SX440W
  • SX445W
  • TX230W
  • TX235
  • TX235W
  • TX430W
  • TX435W
  • Workforce WF7010
  • Workforce WF7015
  • Workforce WF7515
  • Workforce WF7520
  • Workforce WF7521
  • Workforce WF7525
  • XP100
  • XP102
  • XP103
  • XP200
  • XP201
  • XP202
  • XP203
  • XP204
  • XP205
  • XP206
  • XP207
  • XP208
  • XP210
  • XP211
  • XP212
  • XP213
  • XP214
  • XP215
  • XP216
  • XP217
  • XP225
  • XP235
  • XP240
  • XP241
  • XP242
  • XP243
  • XP245
  • XP247
  • XP30
  • XP300
  • XP301
  • XP302
  • XP303
  • XP305
  • XP306
  • XP310
  • XP311
  • XP312
  • XP313
  • XP315
  • XP320
  • XP322
  • XP323
  • XP325
  • XP33
  • XP330
  • XP332
  • XP333
  • XP335
  • XP340
  • XP342
  • XP343
  • XP345
  • XP400
  • XP401
  • XP402
  • XP403
  • XP405
  • XP406
  • XP410
  • XP411
  • XP412
  • XP413
  • XP415
  • XP420
  • XP422
  • XP423
  • XP425
  • XP430
  • XP431
  • XP432
  • XP434
  • XP435
  • XP440
  • XP441
  • XP442
  • XP445
