The Solo X kits have been designed specifically for the PX700 and PX800 series of printers.
[See compatibility information below]

The kit design includes a tube part that can be split and threaded through an enlarged screw hole in the back of the printer while leaving the connector inside to act as a strain relief.

Note: They will not fit a printer that have two waste ink tubes (eg: R1800, R2400)

Design Features:

• 35cm (13.5") single tube (in 15cm + 20cm parts)
• Two part design allows insertion through enlarged screw hole
• Connector between parts acts as strain relief, protecting against accidental pulling on tubing/tank

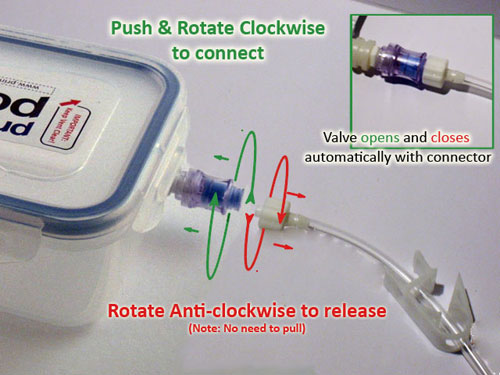

• The valve closes automatically when the waste tube fitting is unscrewed
• A tight liquid proof seal around the fitting stops any leakage
• Simple to install, easy to maintain.
• Tanks are all re-usable after emptying

Boxes Only:

• Vent hole to allow any air out automatically (No need to vent a bag regularly).
• The location and size of the vent hole allows for accidents as the waste tank can effectively fall and hang from the waste tube with minimal, if any, spillage.

Bags Only:

• Completely sealed tank
• Excellent durability
• Recommended for environments with curious children or where space is minimal
• Includes simple vent fitting/tool for emptying

Compatibility:

This kit has been designed specifically for the following series of printers

• PX700W, PX710W, PX720WD, PX730WD

• PX800FW, PX810FW, PX820FWD, PX830FWD

• TX700, TX710W, TX720WD, TX730WD

• TX800FW, TX810FW, TX820FWD, TX830FWD

• Artisan 700, 710, 725, 730

• Artisan 800, 810, 835, 837


If you haven't used it already, then please use the "QuickFind" tool to identify whether this kit will fit your printer.

Instructions

A new set of instructions on how to install this kit is now available

Product Specification

• Pre-fitted valve, and liquid-tight fitting
• Extension/Connection tube, pre-assembled with:
  • Tygon tubing 35cm (minimum) total length
  • 1x Tube clamp
  • 2x Barbed tube connector
    • 1x Connect to printer waste tube
    • 1x Connect both parts of kit tubing
  • 1x Tube routing clip (double)

Tank Options

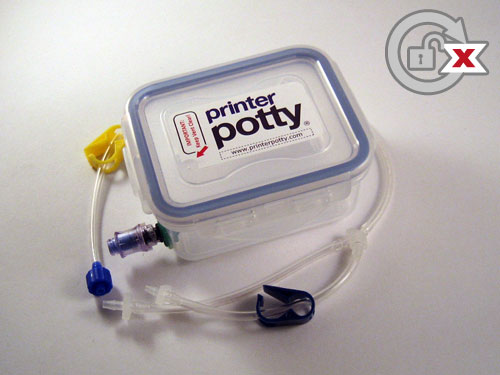

• 180ml / 350ml rigid Box
  ..OR..

• 220ml strong flexible Bag
• 1x "Vent" fitting (for emptying air/ink from bag as required)

Boxes and Bag tanks are all interchangeable thanks to the valve/connection system used
